1 Description

This layer configures some keybindings in spacemacs to make it compatible with keyboard layouts that differs from the traditional en-us keymap.

2 Installation

To use this configuration layer, add it to your ~/.spacemacs. You will need to add keyboard-layout to the existing dotspacemacs-configuration-layers list in this file. You can then select the desired layout by specifying the kl-layout variable:

(setq-default dotspacemacs-configuration-layers '(
  (keyboard-layout :variables kl-layout 'dvorak)))

3 Configuration

3.1 Enable/Disable package configurations

This layer can be customized with two variables:

  • kl-enabled-configurations
  • kl-disabled-configurations

The first one is used to set the list of configurations to activate, and the second one to prevent loading certain configurations. If the kl-enabled-configurations is nil (by default), all configurations are loaded. Otherwise, only the listed configurations are loaded. Any configuration listed in kl-disabled-configurations will never be loaded, whether it is in the enabled list or not (empty by default).

(setq-default dotspacemacs-configuration-layers '(
  (keyboard-layout :variables
                   kl-layout 'dvorak
                   kl-disabled-configurations '(org magit))))

3.2 Add/Override key bindings

It is possible to override or add bindings by defining functions named kl/pre-config-<NAME> and kl/post-config-<NAME> in dotspacemacs/user-init. They are respectively called just before and after the actual configuration of keybindings in this layer, so you don't have to think about when to apply the configuration by yourself. <NAME> is the name of the configuration you want to customize, they are listed under the Configuration section.

Example:

(defun kl/post-config-company ()
  "Company delete backward."
  (kl/set-in-state company-active-map (kbd "C-w") 'evil-delete-backward-word))

Note: If you define some of these functions in your own layer, be sure that the keyboard-layout layer is placed after it in the dotspacemacs-configuration-layers list.

4 Concept

This package first switch traditional hjkl movement keys with their equivalent in destination layout, and then try to correct the bugs introduced by these changes in other parts of Spacemacs. This layer only tries to do these changes when the letters are used for doing a movement.

The equivalent remapping is also made for uppercase letters, CTRL+KEY, META+KEY and leaders keybindings (SPC …) whenever it makes sense to make such changes.

In some cases the key remapping will not follow these conventions, mainly because there are better alternatives, or because some moves don't make sense.

Example: In the magit status buffer, the c is used for commit by default,
but if we want to follow the conventions, it should be remapped to "move left"
in bepo. As it is not useful to move left on magit because operations are done
line by line the c is not remapped.

5 Keyboard layouts

The keyboard-layouts available with this layer are the following:

5.1 bepo


bepo is a keyboard layout optimized for the French language.


The mapping correction is the one proposed for vim on the official bepo wiki.

  • Map the movements keys under the right hand's fingers:
    • c → h
    • t → j
    • s → k
    • r → l
  • Map lost functionalities back to some keys:
    • h → r
    • j → t
    • k → s
    • l → c

Some bepo keys are not used in traditional mapping, mainly because they are not on the en-us keyboard layout. They are used as aliases for other shortcuts:

  • Map unused é key as an alias of w, more useful in vim mode:
    • é → w
    • É → W
  • Map indentation on direct-access keys:
    • » → >
    • « → <

Some default configurations are also not optimal for vim, so the following defaults are changed:

  • Change evil-escape escape combination to something faster to type, while being nearly nonexistent in French or English words:
    • fd → gq
  • In avy, the key used to select words/lines are remapped to the 8 characters under the fingers:
    • a u i e t s r n

Note: One difference exists with the wiki version: the w is not remapped to C-w to avoid having to change its meaning in other modes. Spacemacs provides already a SPC w key binding for working with windows.

5.2 dvorak

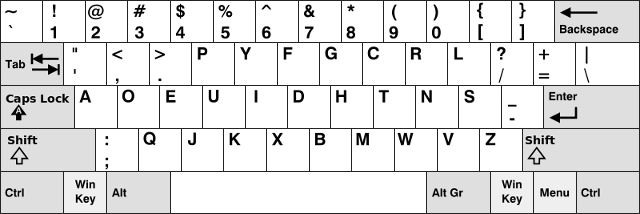

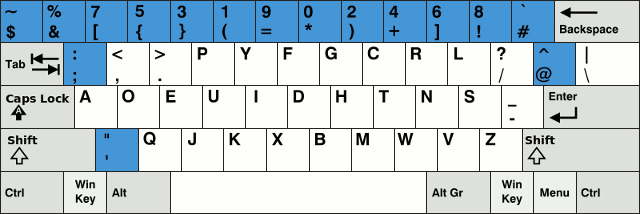

dvorak is a keyboard layout optimized for the English language. dvorak programmer is an optimized keyboard layout focused in programming and it's a variant of the more general dvorak (us) keyboard layout. This configuration will remap keybindings for the dvorak-programmer variant.


6 Package Configurations

The available configurations are:

  • ace-window
  • avy
  • comint
  • company
  • elfeed
  • evil
  • evil-escape
  • evil-evilified-state
  • evil-surround
  • eyebrowse
  • flycheck
  • helm
  • imenu-list
  • ivy
  • magit
  • mu4e
  • neotree
  • org
  • org-agenda
  • ranger
  • twittering-mode

7 Keybindings

This layer is using functions that try to automatically remap keybindings in a lot of modes, so it's difficult to list all changed keybindings. And

  • You chose to use a different keyboard layout.
  • You chose to be on the dark side by using evil (because they have :cookie: obviously).
  • You chose to use a layer, written with :heart:, that try to solve the induced mess.

So the price you have to pay is the absence of a keybindings list.

8 Sources

The keyboard-layout logo is coming from openclipart.org and is under the public domain. The bepo logo and the keymap images are coming from the bepo official website. They are licensed under the CC-BY-SA.
